Provision Windows VM in Proxmox

Last updated on |
under |

Introduction

This guide outlines the process of creating a new Windows virtual machine (VM) in Proxmox VE using VirtIO drivers, so that Windows can detect and interact with VirtIO-based disk and network devices. It is intended for system administrators and IT users who need to deploy Windows Server within the Proxmox environment. The process is performed via the Proxmox web interface, where you upload the Windows ISO and the VirtIO driver ISO, create a VM with VirtIO hardware, and load the necessary drivers during and after the Windows installation. This approach enables optimized performance and efficient device integration, ensuring Windows recognizes the attached virtual disk and network adapters.



Prerequisite

  • Access to Proxmox VE with privilege to provision new VM
  • Windows ISO and VirtIO driver ISO have been uploaded to the Proxmox VE
  • Basic understanding of Proxmox VE



Step-by-step guide

Step 1: Create a new VM

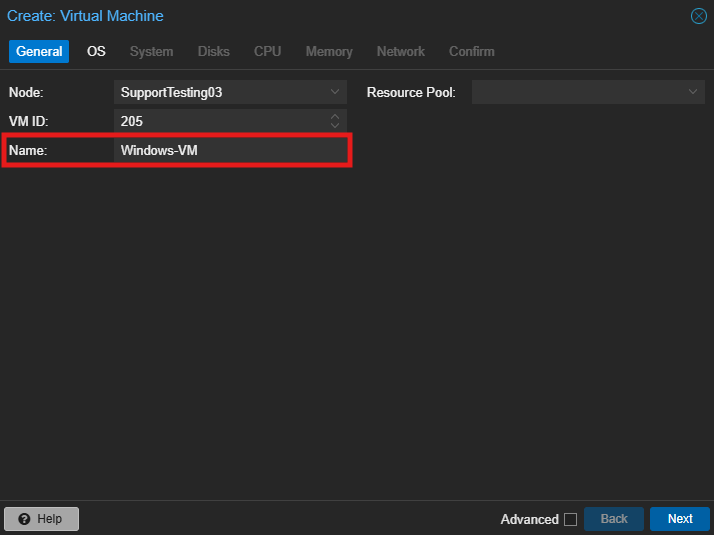

  • Enter the VM name.
    Proxmox Create VM wizard - General page with VM name

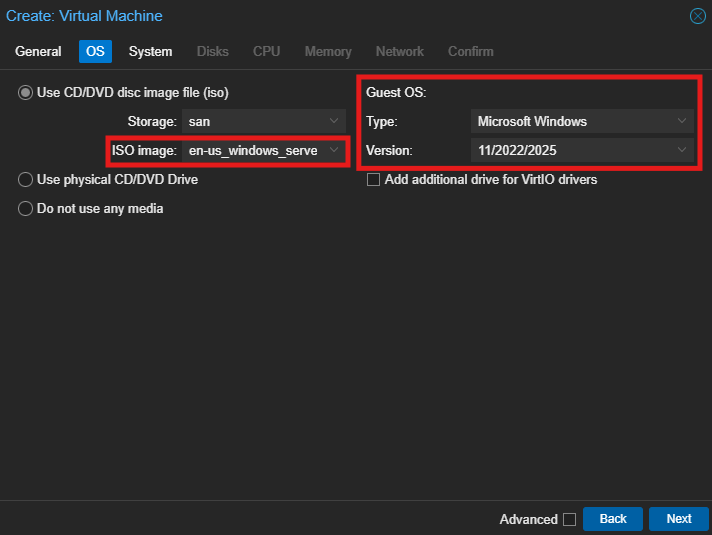

  • Select the Windows ISO. For Guest OS, select Microsoft Windows, and the version will depend on the Windows version you are installing.
    Proxmox Create VM wizard - OS page with Windows ISO and Guest OS selection

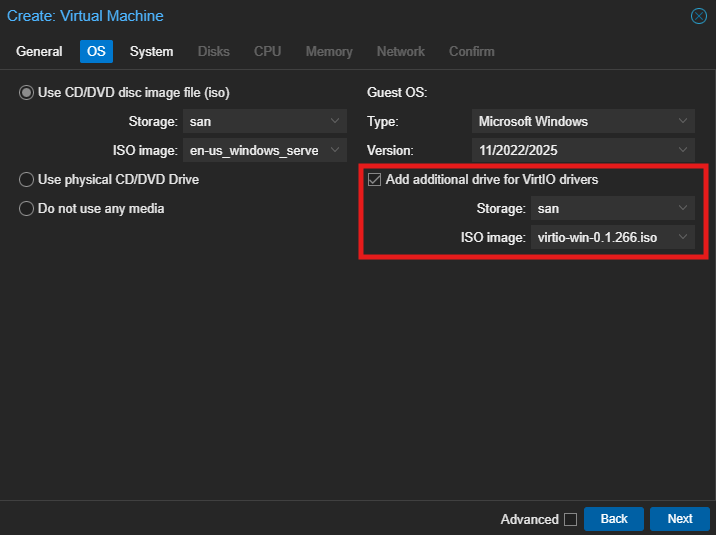

  • Tick the checkbox Add additional drive for VirtIO drivers below the Guest OS section, and select the VirtIO ISO.
    Proxmox Create VM wizard - OS page with Add additional drive for VirtIO drivers checkbox
    If you have missed out adding the VirtIO ISO, you can still add it later under the VM Hardware section.

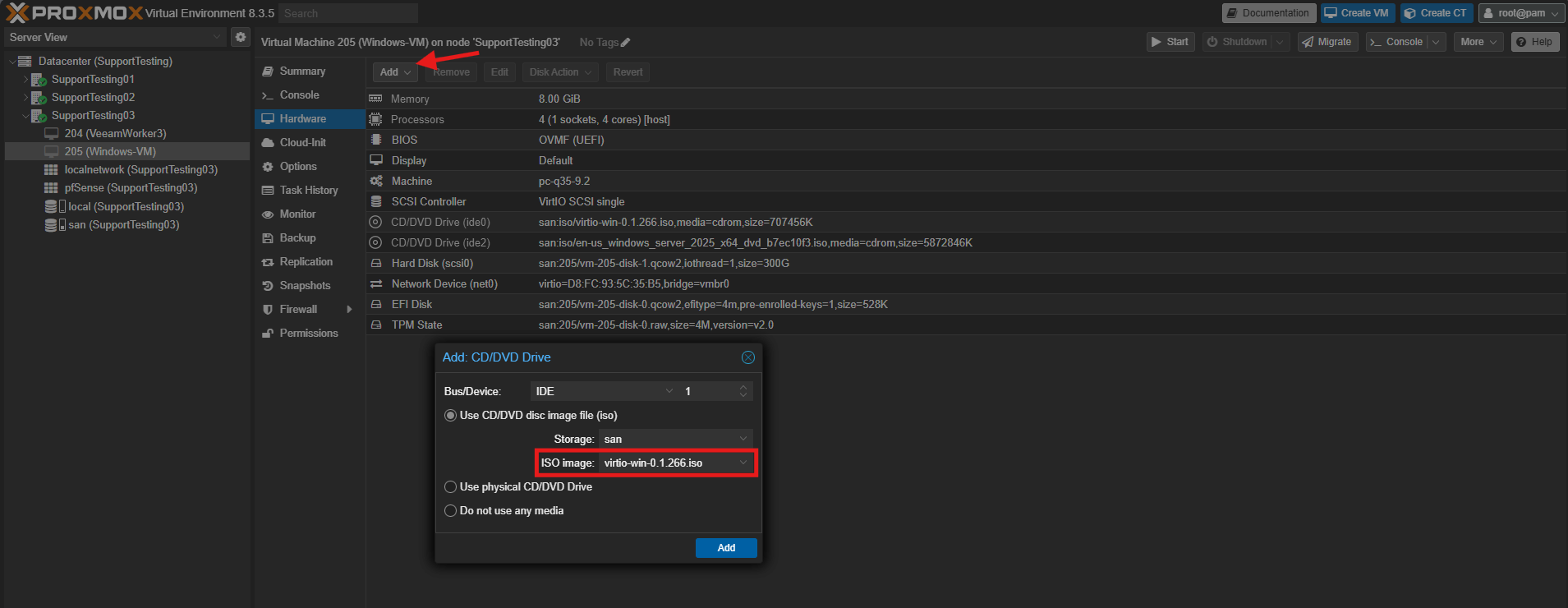

    Adding the VirtIO ISO through VM Hardware



  • Click on Next if you have no special configuration.

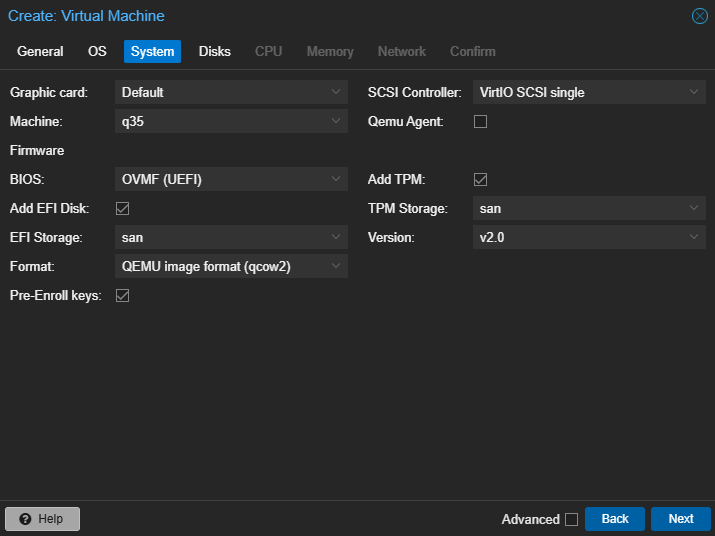

    Proxmox Create VM wizard - System page

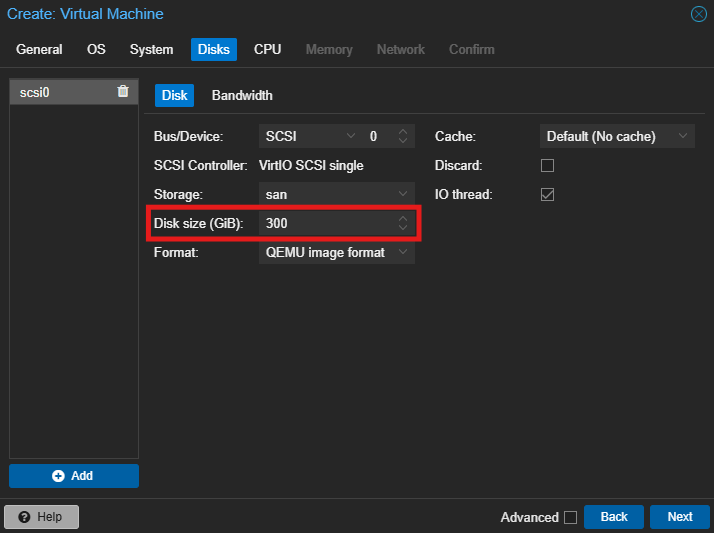

  • Enter the VM disk size.
    Proxmox Create VM wizard - Disks page with disk size



  • Enter the number of Cores you wish to assign to the VM, and select host as the type.
    Important Note⚠️: Using host as the CPU type gives better performance, but it is not ideal for an HA setup because the VM can only be migrated between hosts with the same CPU. If you require an HA setup, use a CPU type that matches your host CPU family, such as x86-64-v2-AES for Intel or AMD hosts.

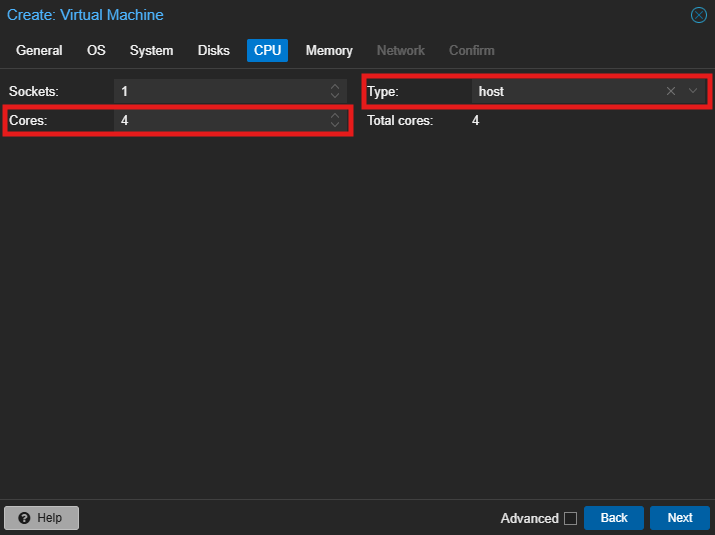

    Proxmox Create VM wizard - CPU page with host CPU type



  • Enter the amount of RAM that you wish to assign.

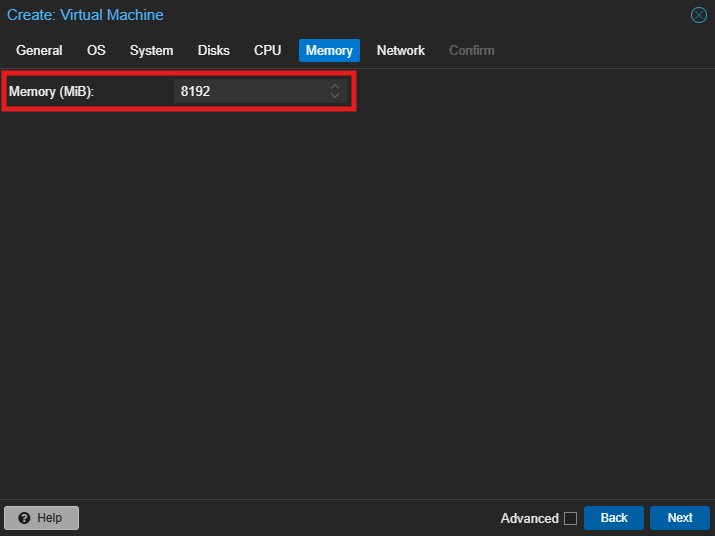

    Proxmox Create VM wizard - Memory page with RAM allocation



  • You may click on Next to use the default network configuration (VirtIO network adapter), or enter your own setup.

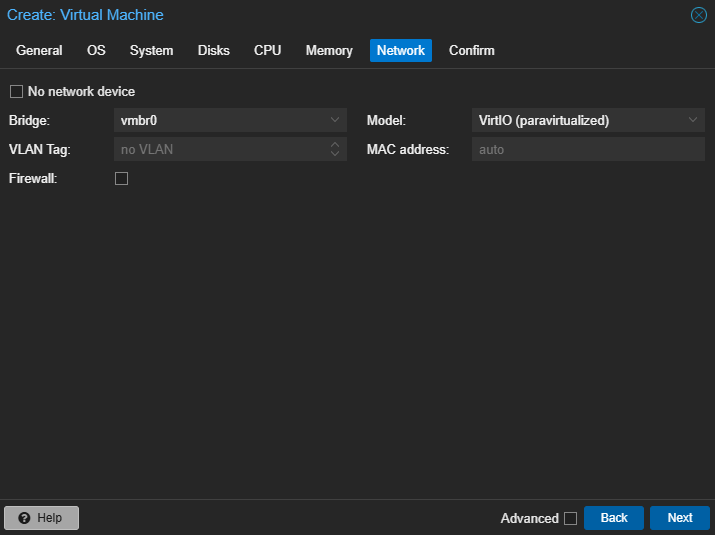

    Proxmox Create VM wizard - Network page with VirtIO network adapter



  • Click on Finish to confirm the VM setup.
  • Select the newly created VM from the node list on the left, then click on Start to power it on and boot into the Windows installation.

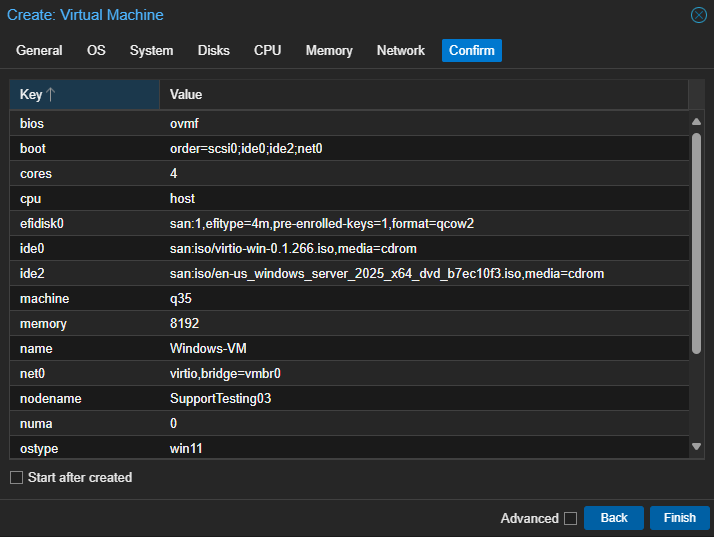

    Proxmox Create VM wizard - Confirm page



Step 2: Install the VirtIO storage driver during Windows Setup

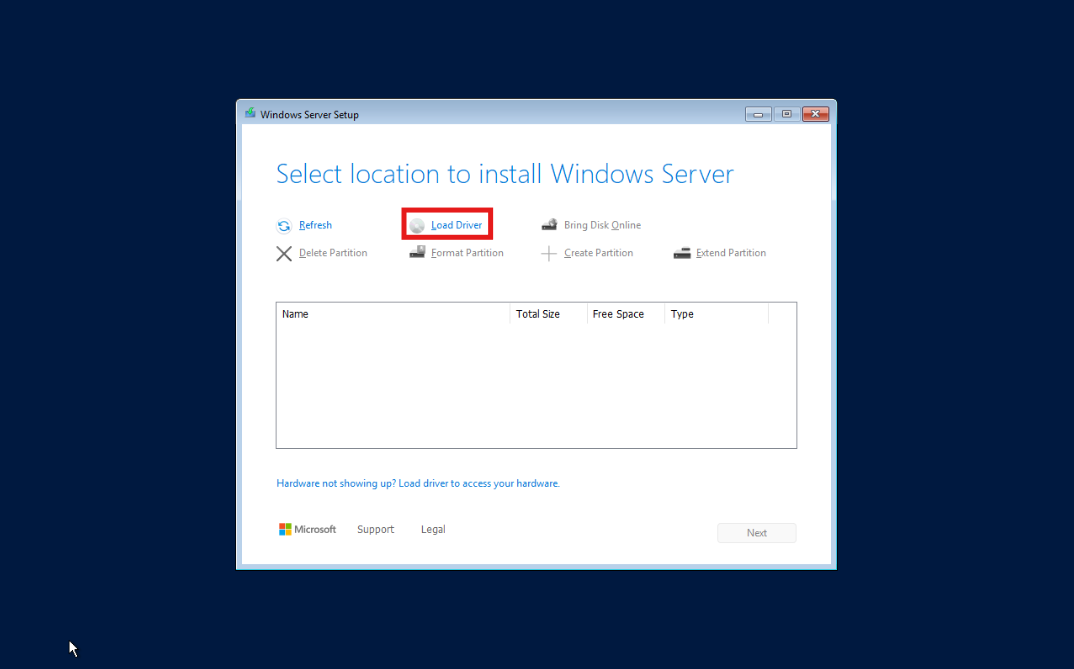

  • Once the VM has booted, proceed with the Windows Setup until you reach the Where do you want to install Windows? page. No disk will be detected at this stage. Click on Load Driver.
    Windows Setup with no disk detected and Load Driver option

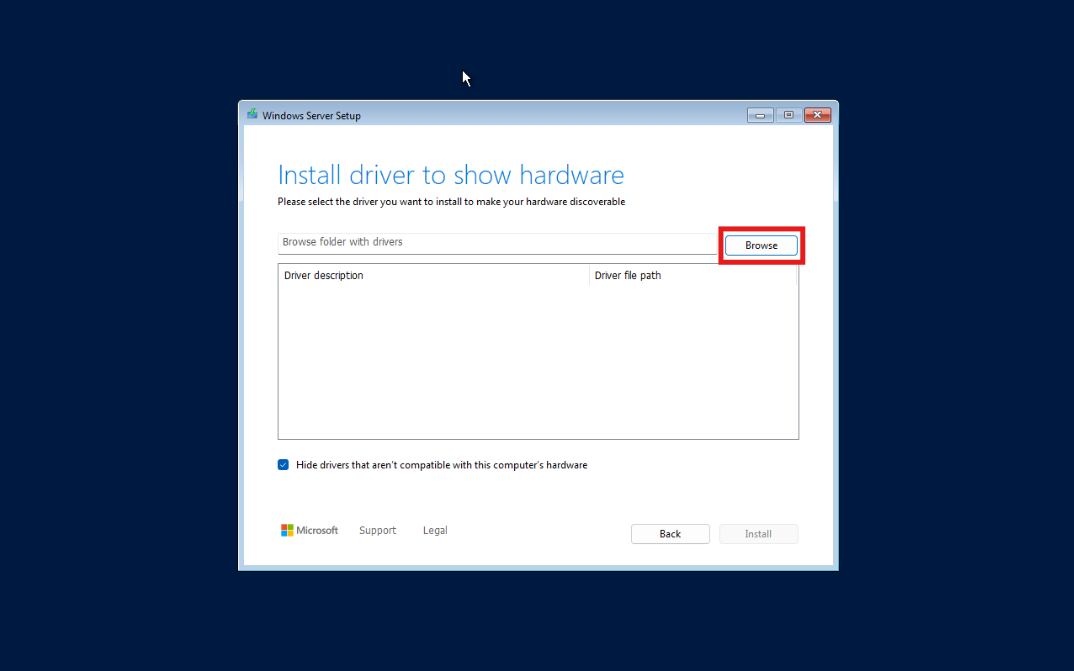

  • Click on Browse to load the VirtIO ISO.
    Load Driver browse window



  • Expand the VirtIO ISO drive and navigate to the vioscsi folder. Expand the driver folder that matches your Windows version; for example, for Windows Server 2025, it will be 2k25. Then select the amd64 folder.
    Once the driver is loaded, you will see it listed on the page.

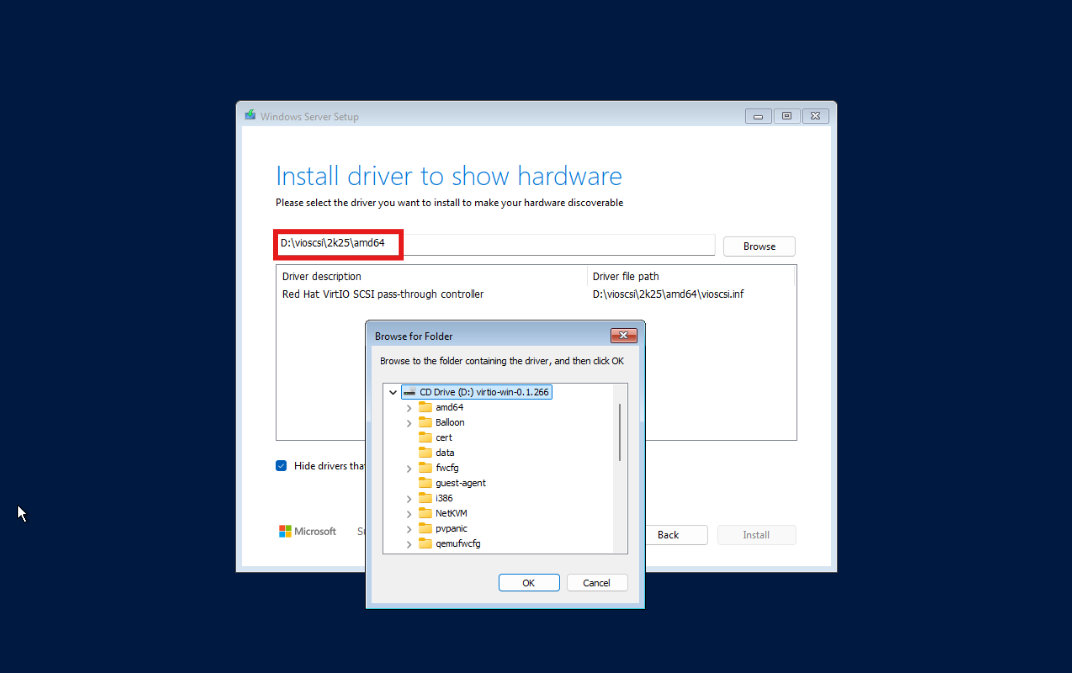

    Browsing the VirtIO ISO for the vioscsi driver folder



  • Select the Red Hat VirtIO SCSI pass-through controller driver and click on Install (or Next).

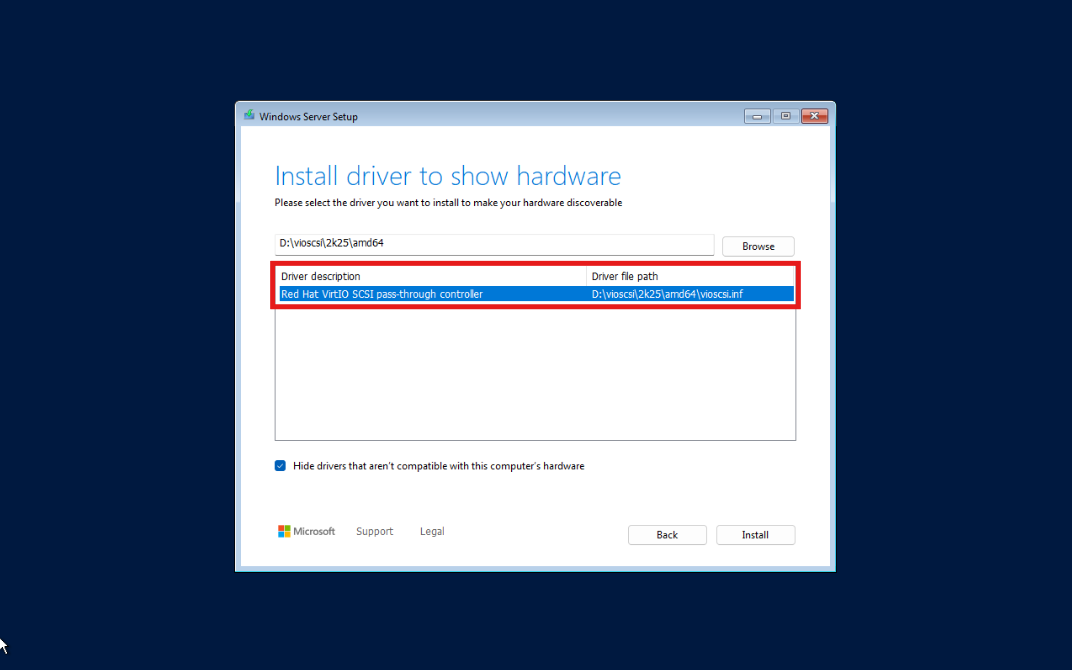

    Selecting the Red Hat VirtIO SCSI driver and clicking Install



  • Once the driver is installed, the disk will now be detected, and you may continue with the Windows installation.

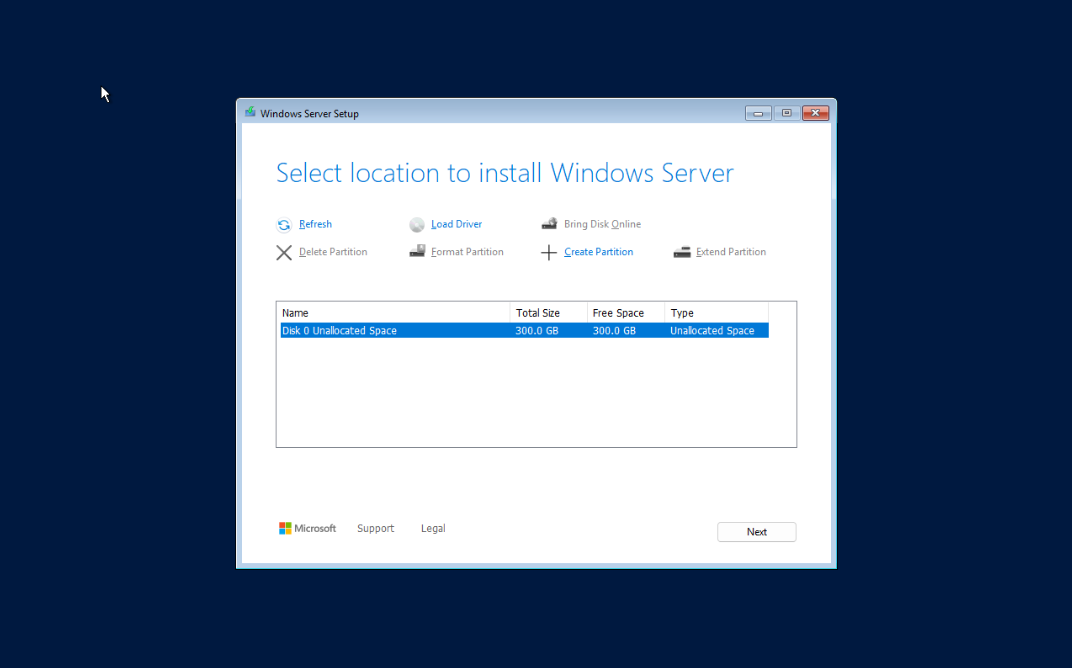

    Disk detected after installing the VirtIO driver



Step 3: Install the remaining VirtIO drivers and QEMU Guest Agent

  • Once Windows is installed and booted up, open File Explorer, open the Virtio ISO drive, and double-click on virtio-win-guest-tools.exe to install the remaining drivers, such as the VirtIO network (NetKVM) and balloon drivers, together with the QEMU Guest Agent.
  • Follow the installation wizard and click on Finish once it is completed. You may be prompted to restart the VM for the network adapter to work.



Step 4: Remove the VirtIO ISO from the VM Hardware

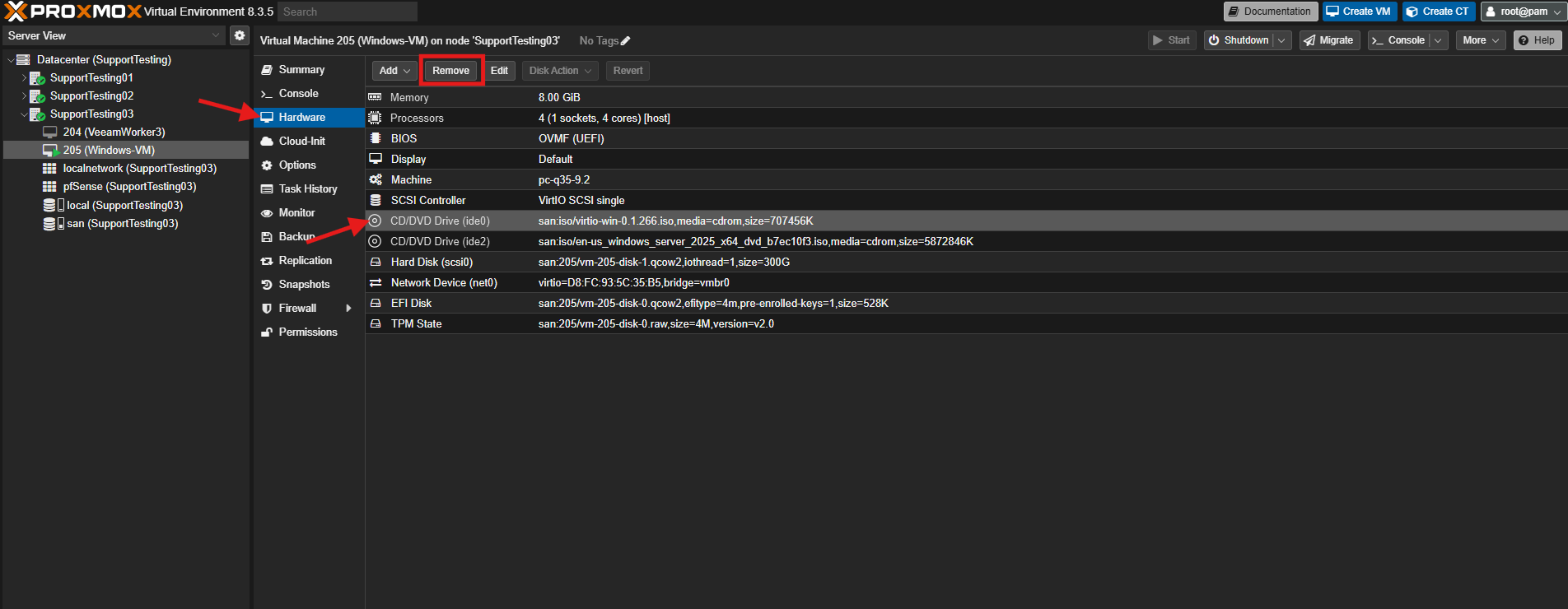

  • Once all the drivers are installed, you may remove the VirtIO ISO from the VM Hardware.
    Removing the VirtIO ISO from VM Hardware



Conclusion

By following this guidance, you can provision a new Windows VM in Proxmox VE, install the required VirtIO storage and network drivers, and complete the Windows setup with optimized VirtIO performance.



For additional assistance or if you encounter any issues, please contact our support team at support@ipserverone.com.
