How to Configure WAN and LAN Firewall Rules in pfSense

Last updated on Sep 15,2026 |

under

by Zihui

Introduction

Network administrators and system engineers often need to manage traffic policies on firewall interfaces to protect network infrastructure while allowing authorized services to communicate seamlessly. Configuring WAN and LAN firewall rules in pfSense enables administrators to control inbound connections from the public internet and regulate outbound or internal traffic from the local network. This setup ensures that critical services remain accessible to trusted hosts while blocking unauthorized access attempts. By establishing proper rule parameters on both interfaces, you maintain robust network security and optimized operational connectivity.

Prerequisite

Access to pfSense web management console
Access to pfSense with admin privileges
Basic knowledge of networking concepts and firewall rules

Step-by-step guide

The diagram below illustrates the example IP addresses and entities used throughout this guide.

WAN Rules Configuration

This section guides you through creating firewall rules specifically for the WAN interface to manage inbound traffic from external networks.
- Log in to your pfSense web management console.
- Navigate to Firewall menu and click Rules.
- Select the WAN tab.
- Click the green Add button to create a new rule.

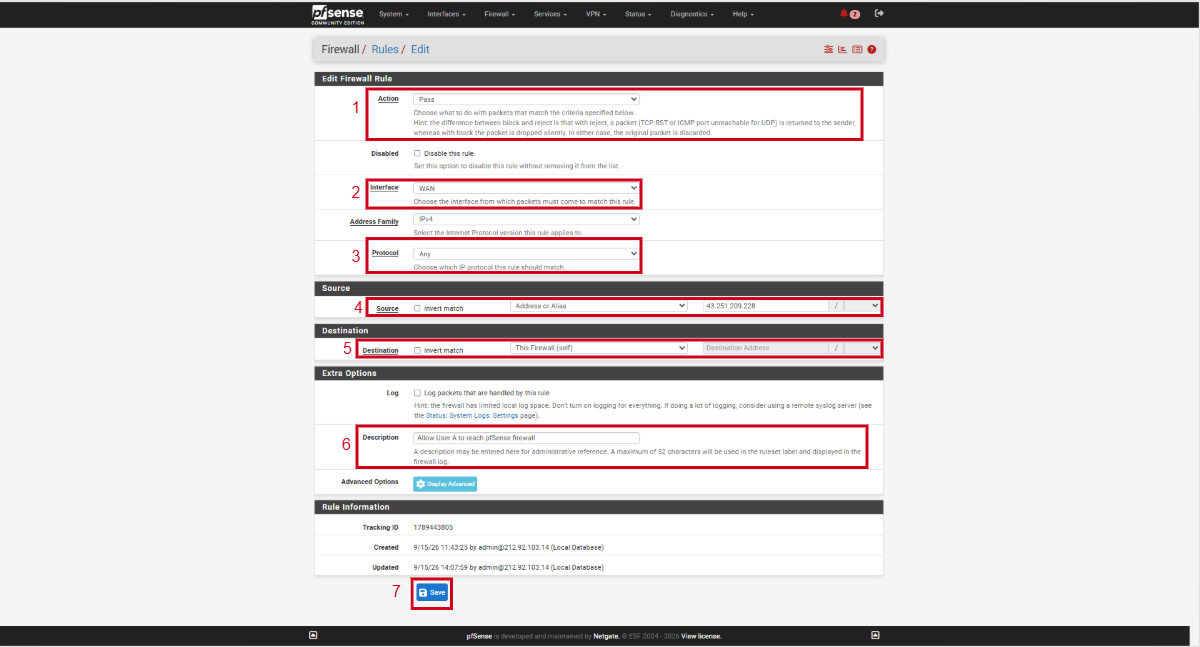

- Set the Action (Pass or Block), Interface (WAN), Protocol, Source, and Destination details.
- Enter a descriptive name in the Description field.

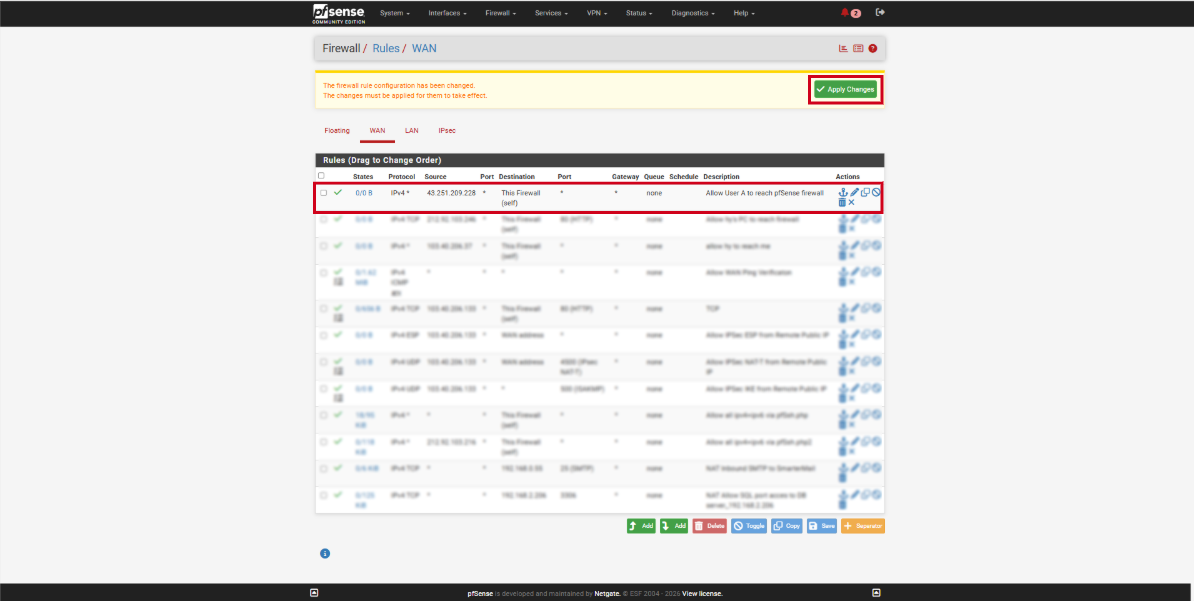

- Click Save and then click Apply Changes to activate the rule.

Important Note ⚠:Ensure this rule is placed at the top of the rule list so it takes priority and is not overridden by rules below it.

In this configuration, the WAN rule grants traffic from User A’s VPN IP address (43.251.209.228) to the pfSense firewall (103.40.206.102).
To verify connectivity, User A can run the following command in their terminal:

telnet 103.40.206.102 80

LAN Rules Configuration

This section guides you through setting up firewall rules on the LAN interface to regulate internal network traffic and outbound requests.
- Log in to your pfSense web management console.

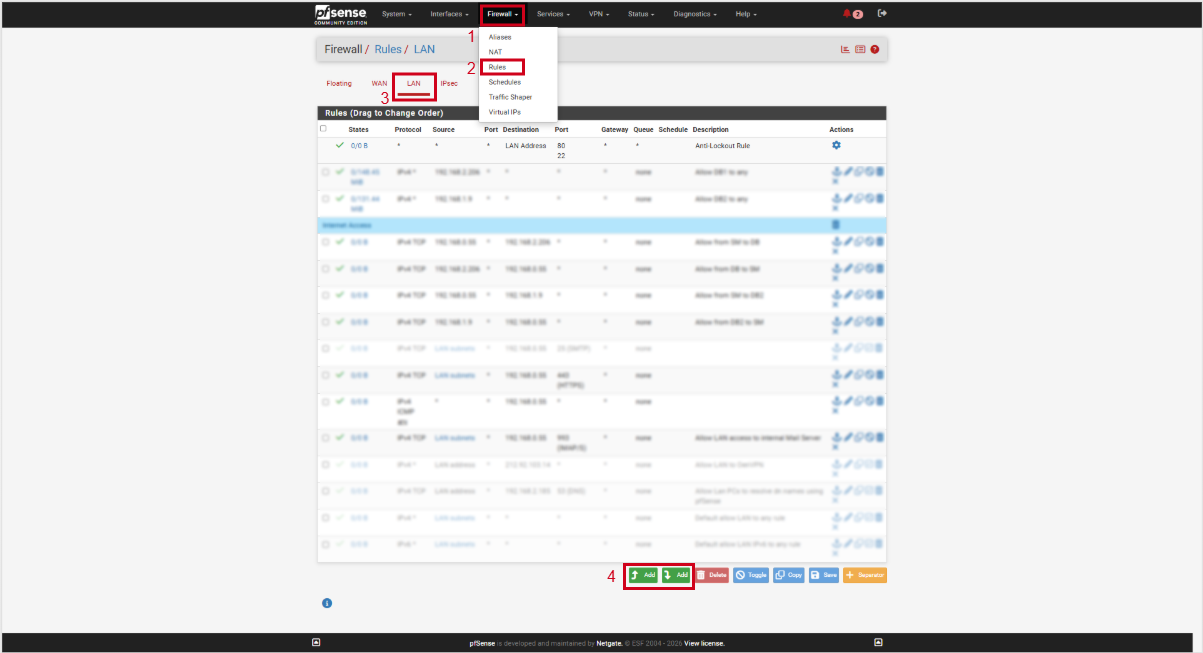

- Navigate to Firewall menu and click Rules.
- Select the LAN tab.
- Click the green Add button to add a new LAN rule.

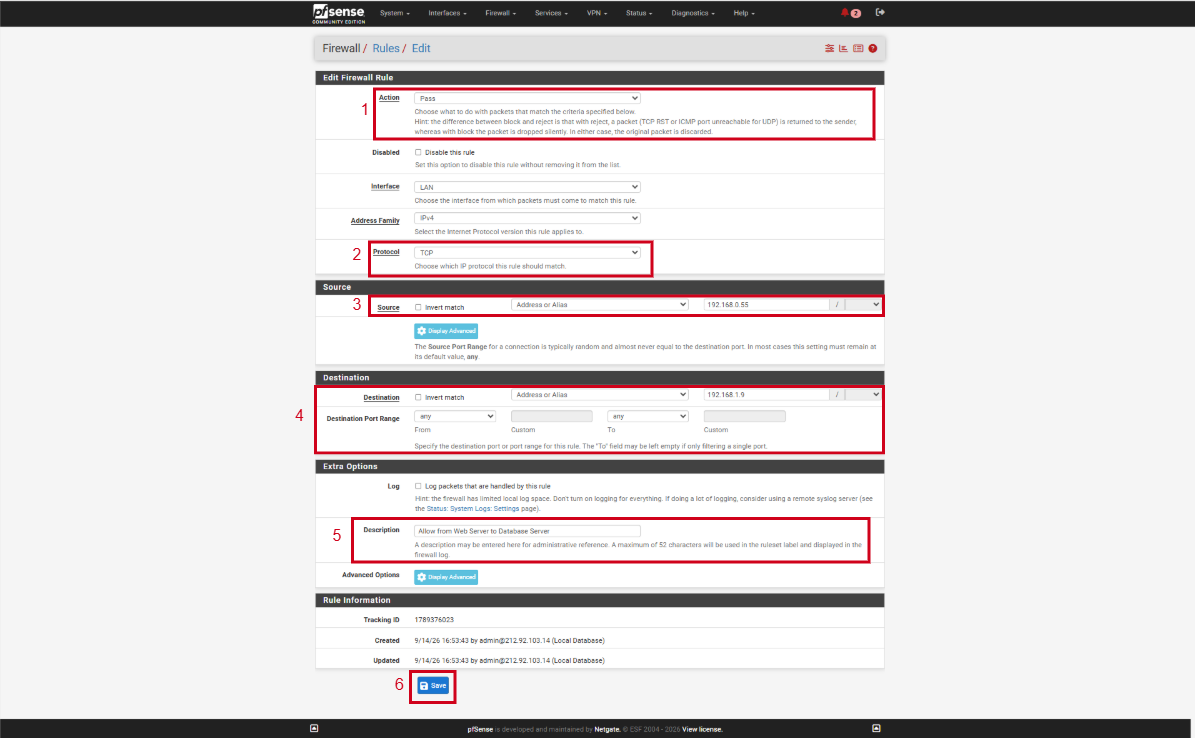

- Define the Action (Pass or Block), Protocol, Source (e.g., LAN net), and target Destination.
- Add a clear summary in the Description field.

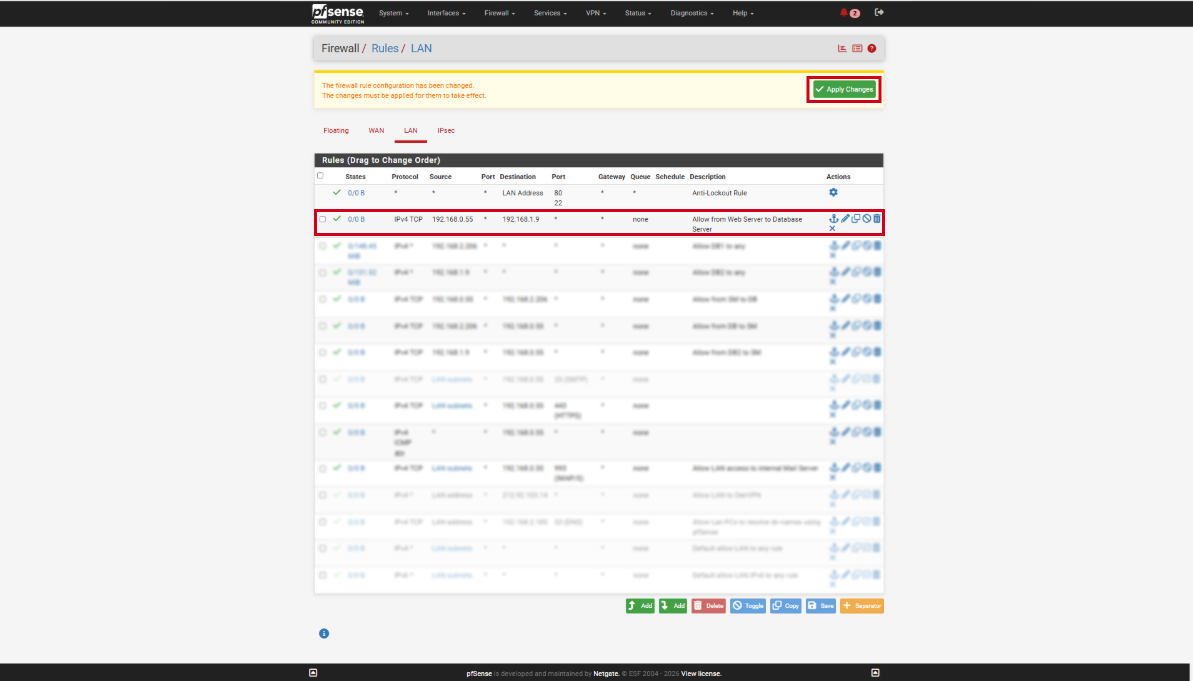

- Click Save and select Apply Changes to update firewall behavior.

Important Note ⚠:Ensure this rule is placed at the top of the rule list so it takes priority and is not overridden by rules below it.

In this configuration, the LAN rule grants traffic from web server’s IP address (192.168.0.55) to the database server’s IP address (192.168.1.9).
To verify connectivity, run the following command on your web server via SSH. (Port 3306 is used in this example because it is the configured open port.)

telnet 192.168.1.9 3306

Conclusion

By following this guidance, you can successfully configure and manage WAN and LAN firewall rules in pfSense to protect your internal network and securely control incoming and outgoing traffic.
